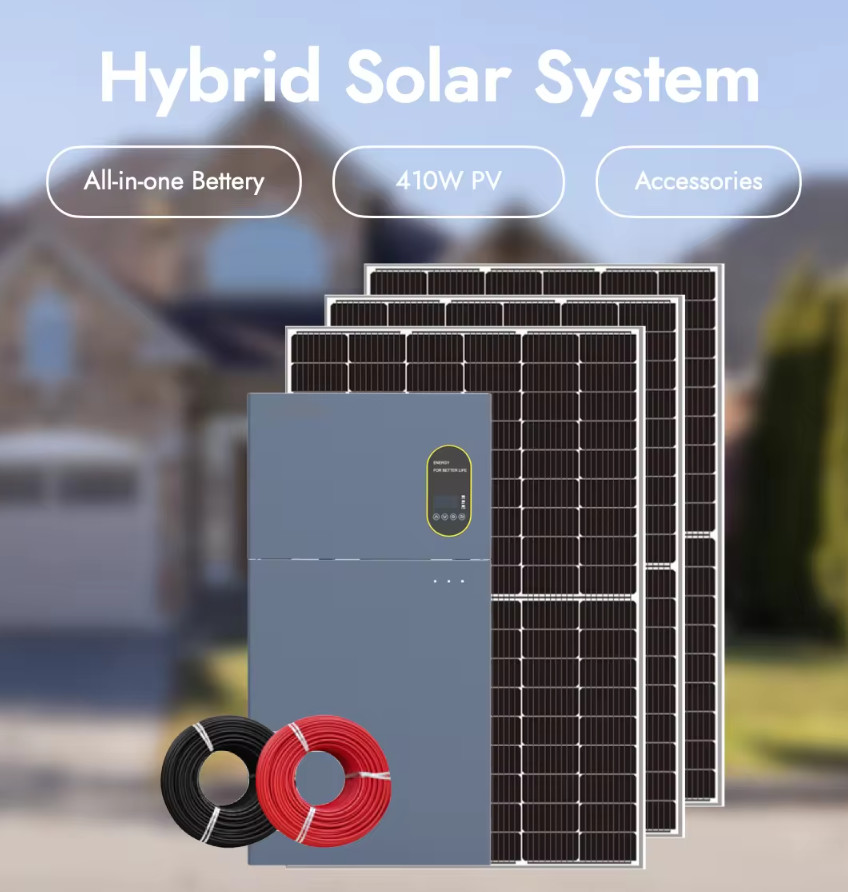

Solar Generator Kit Off On Grid Solar Power System Solar Hybrid Inverter Complete Set

Product Categories
guangzhou pmd technology co ltd
Contact Now

Solar Generator Kit Off On Grid Solar Power System Solar Hybrid Inverter Complete Set

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Load Power (W) : 5KW

Output Voltage (V) : 90~108V

Warranty : 15 Years

Output Frequency : 50Hz/60Hz

Battery Type : Lithium Ion

Contact Now

Solar Generator Kit Off On Grid Solar Power System Solar Hybrid Inverter Complete Set​

Product parameters



INERTER MODEL
INV-SPH3.6K
INV-SPB5K
INV-SPH5K







PV INPUT
Max. PV Input Power
7.36kW

10kW
Max. PV Input Voltage
580V

580V
MPPT Range
100~550V

100~550V
Max. Input Current
15A/15A

15A/15A
Max. Short Circuit Current
18.75A/18.75A

18.75A/18.75A
MPPT Trackers
2

2
Strings Per MPPT Tracker
1/1

1/1





AC PORT
Rated Grid Output Power
3.68kVA
5kVA/4.6kVA(DE)
5kVA/4.6kVA(DE)
Max. Grid Input Power
7.36kVA
10kVA
10kVA
Rated Grid/Backup Voltage

230Vac

Rated Grid/Backup Frequency

50/60Hz

Surge Backup Power
7.36kVA/7.36kW
10kVA/10kW
10kVA/10kW
Rated Backup Power
3.68kVA
5kVA
5kVA
THDi

<3%

THDv

<3%(LinearLoad)/<5%(Non-linearLoad)

DCV

<100mV

Crest Ratio

3:1

Transfer Time

<10ms

EFFICIENCY
Max. Efficiency
97.3%

97.3%
Max. Round Trip Efficiency
90%
90%
90%








GENERAL DATA
Operating Temperature Range

-20~60℃

Topology

Transformerless

Dimensions(W*H*D)

590×405×205mm

Weight
19.5kg
18kg
19.5kg
Load Monitoring

Meter/CT/Backupbox

External Communication

RS-485/WIFI/4G/Ethernet


 Solar Generator Kit Off On Grid Solar Power System Solar Hybrid Inverter Complete Set



HIGH PERFORMANCE

1.200% PV over management;

2.200% backup overload capacity, 60A battery current

3.Up to 8000 + cycle Ilfe

4.Max. efficiency 97.3%, Battery efficiency 97%;



HIGH RELIABILITY

1. UPS level redundant protection against backup load breakdown;

2.Three-level firmware and two-level hardware battery protection;

3.Multiple temperature monitoring, delicate thermal management;

4.Max. 6 Inverters in parallel to increase power availability.



HIGH INTELLIGENCE

1.Internal EMS optimizes home energy supply automatically;

2.PV production forecast;

3.Built-in electric power service, FCAS,VPP, etc.;

4.Online monitoring, online diagnosis,online service.

Company Profile

Guangzhou Pei Mengdan new energy Technology Co., LTD
Since its establishment, PMD adheres to market and customer needs, keeps developing in the new
energy industry. Basen has obtained 12 patents.The enterprise has passed ISO9001 Quality management
System Certifcation, and our products have obtained UL, CE, UN38.3, MSDS, IEC and other international certifications.

Solar Generator Kit Off On Grid Solar Power System Solar Hybrid Inverter Complete Set

Successful Project

FAQ

Q1. Could you do customer brand?
A:   Of course ,we could provide professional OEM service.


Q2: How to proceed with an order?
A:  Firstly let us know your requirements or application.Secondly, We quoteaccording to your requirements or our           suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly Wearrange the
production.

Q3: How do you ship the goods and how long does it take to arrive?
A:   lt usually takes 10-15 days to arrive.Airline and sea shipping is alsooptional.

Q4.  What is your terms of payment?
A:  T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you
     pay the  balance.
